With drill rigs of Oprema Ravne operator works without physical loads present when drilling with hand tools. At the customer's request and by agreement, we can develop additional special sets or adjust the dimensions, number of drills… etc.

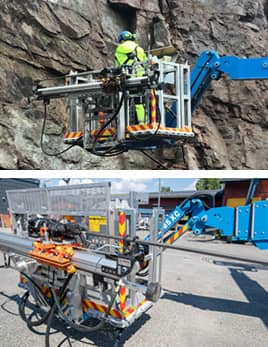

It is used to drill anchor holes designed to protect embankments along roads or other places where the risk of falling rocks endangers human lives. It allows drilling forward, or by simply rotating the rock drill for 180 degrees, in the opposite direction. Its advantage is low weight. It is mainly used in combination with a basket on an elevator. The operator works with the rig without the physical loads that are present when drilling with hand tools. Drill rig LDP1800 Order No. 9 352 30 External dimensions (height / length / width) 400 / 2640 / 300 mm Drilling stroke (customized at the customer's request) 1800 mm Drilling speed 500 - 1500 mm/min Weight 142 kg

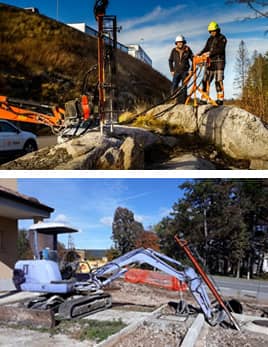

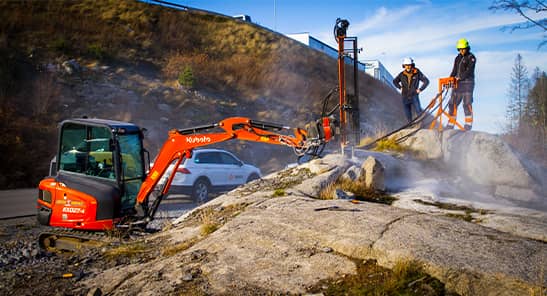

It is used for drilling all types of marble, granite, concrete and other rocks. Allows drilling in all directions within reach of the excavator. With pneumatic hammer MFD90 or VK23. Drill rig LZB1000 LZB1200 LZB1600 LZB2400 Order No. 9 352 33 9 352 35 9 352 37 9 352 36 External dimensions (height / length / width) 2206 / 448 / 571 mm 2410 / 421 / 465 mm 2810 / 421 / 465 mm 3610 / 421 / 465 mm Drilling stroke (customized at the customer's request) 1000 mm 1200 mm 1600 mm 2400 mm Drilling speed 500 - 1500 mm/min 500 - 1500 mm/min 500 - 1500 mm/min 500 - 1500 mm/min Weight 158 kg 167 kg 188 kg 206 kg Please contact us to select drill column length.
It is used for drilling of concrete and all types of marble, granite and other rocks, vertically upwards and at various angles from 0 to 100 degrees. Allows drilling of 4 holes at the same time. The pneumatic part of the rig is feeding, drilling with rock drills and blowing holes with air. Hydraulic cylinders are designed to adjust the drilling position. Drill rig 4x1800 Order No. 9 352 32 External dimensions by vertical drilling (height / length / width) 3520 / 800/ 1400 mm External dimensions by horizontal position (height / length / width) 580 / 3735 / 1480 mm Drilling stroke (customized at the customer's request) 1800 mm Horizontal drilling stroke 300 mm Drilling speed 500 - 1500 mm/min Weight 1050 kg

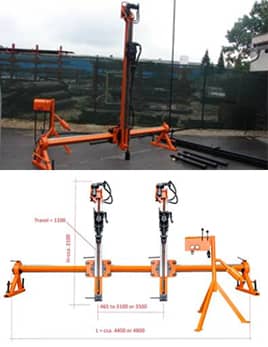

They are used for drilling all types of marble, granite and other ornamental stones in quarries. In some special cases, anchor holes may also be drilled. It is possible to drill vertically downwards, obliquely drill upwards or downwards and in a horizontal direction. Drill rig LPB LPB 2X1500 Order No. 9 352 27 9 352 31 External dimensions by vertical drilling (height / length / width) 2968 / 3120 / 790 mm 2549 / 4000 / 790 mm External dimensions by horizontal position (height / length / width) 1900 mm 1500 mm Horizontal drilling stroke 2315 mm 3200 mm Drilling speed 500 - 1500 mm/min 500 - 1500 mm/min Weight 288 kg 558 kg

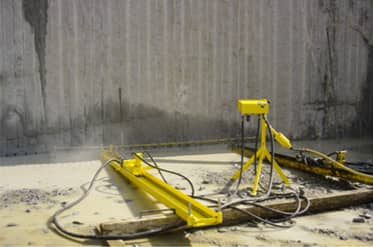

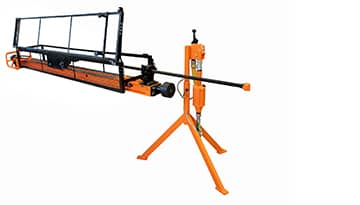

It is used for horizontal drilling of all types of rocks in quarries. The main purpose of horizontal drilling in a quarry is to drill as close to the ground as possible and this RIG allows drilling up to 100 mm from the ground. Drill rig LTV3200A Order No. 9 352 25 Length / Width 4365 / 225 mm Drilling stroke (customized at the customer's request) 3200mm Drilling speed 500 - 1500 mm/min Max. drilling height 100 mm Weight 250 kg
